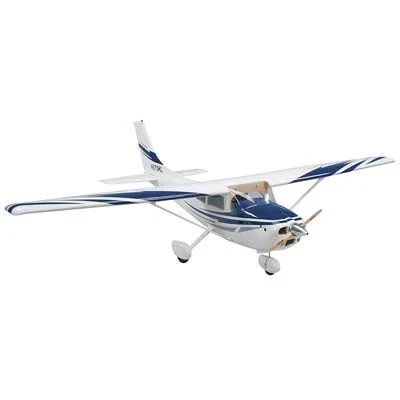

Top Flite Top Flite Cessna 182 Skylane .60-.91 GP/EP ARF 81″

This is the radio controlled- glow or electric powered- almost ready to fly
Cessna Skylane Gold Edition Airplane.

**Additional Technical Info Will Be Available When It Becomes Available.**

FEATURES: Construction: Balsa and ply
Wings: One-piece with plywood wing joiner
Aileron Control: Dual servo
Cowl:
Canopy:
Cockpit Detail: Seats and instrument panel
Spinner: –” (–mm) diameter
Landing Gear:
Wheels: Three foam –” (–mm) diameter
Engine Mount: Two-piece composite
Fuel Tank: –oz (–mm)
Building Time: Ready to fly in 15-20 hours
Warranty: Top Flite? Models guarantees this kit to be free from
defects in both material and workmanship at the date of purchase.
This warranty does not cover any component parts damaged by use or
modification. In no case shall Top Flite’s liability exceed the
original cost of the purchased kit.

INCLUDES: Top Flite Cessna Skylane Gold Edition Airplane with decals- all
hardware- wheels and instruction manual

REQUIRES: Engine: .60-.91 cu in (10-15cc) two-stroke OR
.91-1.20 cu in (15-20cc) four-stroke OR
Motor: Rimfire 120 (50-65-450) Outrunner
Radio: 6-channel
Servos: Six standard with at least 44oz/in (3.2kg/cm) torque
24″ (610mm) Servo Extensions: Two for ailerons
12″ (305mm) Servo Extensions: Six for ailerons- flaps and win tip
lights
Y Harnesses: Two for aileron and flap surfaces
Receiver Pack: 1000mAh minimum and 600mAh pack for flying lights

SPECS: Wingspan: 81 in (2060mm)
Wing Area: 898 sq in (57.9 dm2)
Weight: 11.5-12.5lb (5220-5670g)
Wing Loading: 30 – 32 oz/sq ft (92 – 98 g/sq dm)
Length: 64 in (1630mm)
CG (Center of Gravity): 4-5/16″ (110mm) back from the leading edge of
the wing
Control Throws- Low Rate High Rate
Elevator: 3/4″ (19mm) 10? 1-1/16″ (27mm) 15?
Rudder: 5/8″ (16mm) 9? 1″ (25mm) 15?
Ailerons: 1/2″ (13mm) 14? 5/8″ (16mm) 17?
Flaps: 1/2 – 1″ (25mm) 18? down
full – 2″ (51mm) 36? down

”
