E-Flite E-Flite UMX Turbo Timber BNF Basic

Overview

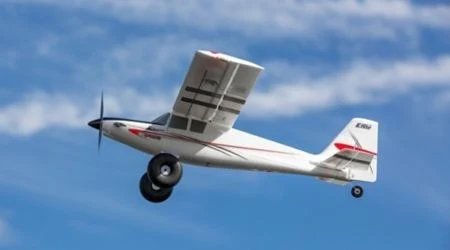

E-flite UMX Turbo Timber BNF Basic

EVOLUTION OF AN ICON

Scaled down from the legendary Timber® 1.5m, the E-flite® UMX™ Timber was the iconic ultra micro model best-equipped for exciting STOL (Short Take Off and Landing) adventures and beyond…until now. The UMX Turbo Timber updates the original design with a modern turboprop-styled nose and 3-blade propeller, plus a higher-power 3400Kv brushless motor. When using the same 2S 280mAh batteries, this Turbo version provides even better STOL performance with shorter takeoffs and faster climbs. You’ll also enjoy extreme aerobatic capabilities and have the power to hover, then climb out vertically. In the hands of experienced pilots, the UMX Turbo Timber can be flown in more places — even off of water with the optional floats (sold separately) — and in smaller spaces. Plus its high-wing configuration and exclusive optional-use SAFE® Select technology provide plenty of stability to make the UMX Turbo Timber a great choice if you’ve mastered flying at least one model before. This makes it a model that pretty much every pilot, from low-time to long-time experienced alike, should own because everyone will enjoy flying it!
Features

Incredible Short Take Off and Landing (STOL) plus sport and aerobatic flight capabilities
Uniquely capable and versatile so it can be flown in more places and smaller spaces
More powerful 3400Kv motor for the power to hover and climb out vertically
Updated turboprop-styled nose, 3-blade prop and trim scheme
Updated landing gear design to secure fairings to fuselage
Functional oversized flaps for shorter takeoffs and landings

Industry-leading Spektrum™ 2.4GHz DSMX® technology
Easy to fly with optional-use SAFE® Select flight envelope protection
Unmatched stability and locked-in feel of AS3X® technology for smoother flight performance
Optional-use leading edge slats for improved STOL and slow flight performance
Functional and factory-installed LED landing, navigation and strobe lights
Optional floats for flying from water (sold separately)
Fully factory-assembled and ready to fly right out the box

MORE POWER AND VERSATILITY

At the heart of the iconic UMX™ Timber® model’s evolution into the UMX Turbo Timber® is the addition of a 3400Kv motor and a 3-blade prop. Always known as and still an easy-to-fly, smooth handling, STOL (Short Take Off and Landing) capable airplane, it now has the thrust — with the same 2S 280mAh batteries — to hover and climb out vertically. It can also perform inverted flight, knife edge, snaps, spins and other advanced aerobatic maneuvers with ease. Functional oversized flaps, plus optional-use leading edge slats, offer improved STOL and slow flight performance. Equipped with oversized tundra-style wheels like its predecessor, the UMX Turbo Timber can take off and land on grass and other rough surfaces better than ever before due to the updated landing gear design that secures the fairings to the fuselage. Experienced pilots can fly it indoors in spaces as small as a single basketball court, and almost anyone who’s mastered flying at least one other airplane before can fly it successfully outdoors in large yards, small parks, sports fields, at RC flying fields and many other places. Install the optional floats (sold separately) and you can add large pools, small ponds, and lakes to your flying site options. Included LED landing, navigation and simulated strobe lights add to the fun and make it possible to fly from earlier to even later in the day. Best of all the UMX Turbo Timber arrives 100% factory-assembled — and is ready to fly as soon as you bind the installed Spektrum™ receiver to your compatible transmitter!
Needed to Complete

Full-range 6+ channel Spektrum DSMX®/DSM2® compatible transmitter
2S 7.4V 200–280mAh LiPo with JST-PH Connector
Compatible LiPo charger

What’s in the Box?

(1) E-flite UMX Turbo Timber® with:
(1) 3400Kv Brushless Motor (installed)
(5) Linear Servos (installed)
(1) Spektrum™ 6-Channel Receiver with brushless ESC (installed)
(1) Product Manual

Specifications

Aileron
Yes
Airfoil Shape
Semi-symmetrical, high wing configuration
Approximate Assembly Time
Less than 1 Hour
Approximate Flight Time
6 minutes
CG (Center of Gravity)
1.1 in (28mm) back from leading edge of wing measured at the fuselage
Charger
Sold separately
Completion Level
Bind-N-Fly Basic
Control Throw – High (Ailerons)
100%
Control Throw – High (Elevator)
100%
Control Throw – High (Rudder)
100%
Control Throw – Low (Ailerons)
70%
Control Throw – Low (Elevator)
70%
Control Throw – Low (Rudder)
70%
Elevator
Yes
Flaps
Functional oversize
Flying Weight
0-250g, 4.8 oz (124g)
Landing Gear
Wire nose gear and main gear foam wheels
Length
19 in (483mm)
Minimum Required Radio
6-channel (sold separately)
Minimum Speed Control
ESC/RX included
Motor Size
180BL
Propeller Size
3-blade 4.7 x 2.75 in (120 x 70mm)
Receiver
Spektrum 2.4GHz DSMX with AS3X technology
Recommended Motor Battery
2S 280mAh w/JST-PH connector sold separately
Retracts
No
Rudder
Yes
Servos
5 Ultra micro 2.3g linear long offsetac
Transmitter Range
Full
Wing Area
119.0 sq in (7.7 sq dm)
Wingspan
27.6 in (700mm)
