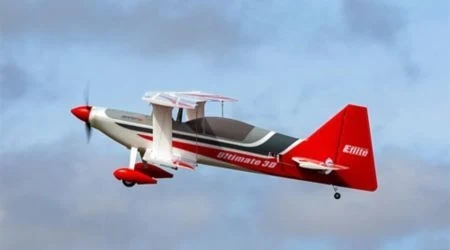

E-Flite E-Flite Ultimate 3D 950mm SMART BNF Basic W/AS3X & SAFE

Overview

THE ULTIMATE ULTIMATE
With its unmistakable lines and exhilarating performance, the Ultimate biplane — in full-scale and in RC model form — has given pilots everywhere respect for the aerobatic capabilities of an airplane with two wings. Gordon Price built and flew the first 10 Dash “Ultimate” design in the mid 1980s and flew the 10-300 in the 1988 World Aerobatic Championships. E-flite® debuted the Ultimate2 in 2015, earning praise from RC pilots worldwide for its solid aerobatic performance and 3D capabilities. With the Ultimate 3D, E-flite® has updated and upgraded that proven airframe to modern-day standards. Its new power system offers better 3S performance and BALLISTIC power with a 4S battery. Higher-torque and higher-speed metal-geared servos keep you firmly in control with the extra power. It’s also equipped with a 60-amp Spektrum™ Avian™ Smart ESC, and the BNF® Basic version is equipped with an AR637TA receiver that offers full-range telemetry including real-time battery voltage, current, temperature and more – along with motor reversing for special ground handling and other capabilities – when using compatible transmitters.

Features
Updated and upgraded to offer improved scale and sport flying, precision aerobatic and all-out 3D capabilities
Oversized control surfaces capable of extreme throws plus vortex generators to enhance 3D performance
Specially tuned motor compatible with 3S and 4S batteries without the need for modifications or upgrades
60-amp Spektrum™ Avian™ Smart ESC provides real-time battery voltage, temperature and other data, plus reversing capabilities, via compatible receivers and transmitters (7+ channel transmitter required for reversing)
Spektrum AR637TA receiver with full-range telemetry and industry-leading DSMX® technology
Easy to fly with innovative and optional-use SAFE® Select flight envelope protection
The unmatched stability and locked-in feel of exclusive AS3X® technology
Four (4) factory-installed higher-torque, higher-speed, metal-geared servos with ball-link equipped linkages
Tool-free wing assembly with quick-release hardware for convenient storage and transport
Lightweight yet durable composite-reinforced, hollow-core EPO construction
Factory-finished with an updated trim scheme including vivid graphics

GO MILD OR WILD!
Equipped with the latest modern-day innovations and upgrades, the E-flite® Ultimate 3D biplane raises the bar for scale, sport and precision aerobatic flying — plus all-out 3D performance too! Stronger, faster metal-geared servos and ball-link equipped linkages deliver positive, precise control while the beveled hinge lines make it possible for the control surfaces to deflect to high angles for extreme 3D capabilities. The new power system, with a specially-tuned motor and prop, is compatible with 3S AND with 4S batteries to deliver extra power and unlimited vertical capability — no modifications required. It also features exclusive Smart Technology via the Spektrum™ Avian™ 60-amp Smart ESC, and the BNF® Basic version is equipped with an AR637TA receiver that offers full-range telemetry including real-time battery voltage, current, temperature and more to compatible transmitters. Plus, with 7+ channel transmitters, the optional-use motor reversing function adds special ground handling and other unique capabilities. The composite-reinforced, hollow-core EPO construction provides a lightweight but durable airframe that’s factory-finished in a striking, ready-to-admire trim scheme. Best of all you can have the Ultimate 3D flight-ready in less time than it takes to charge a battery because no glue is required for final assembly, and installation/removal of the wings is tool-free for easy storage and transport. This makes it the easiest and best choice for almost any pilot looking for their first or next biplane!

Needed to Complete
Full-range 5–7+ channel Spektrum™ DSMX®/DSM2® compatible transmitter
3S 11.1V or 4S 14.8V 1800–2700mAh LiPo with EC3™ or IC3™ Connector
Compatible LiPo charger

What’s in the Box?
(1) E-flite® Ultimate 3D 950mm with:
(1) Spektrum™ Avian™ 60A Brushless Smart ESC (installed)
(1) Brushless Outrunner Motor (installed)
(4) High-Torque Metal-Geared Servos (installed)
(1) Spektrum™ AR637TA 6-Channel Receiver (installed)
(1) Product Manual

Specifications

Aileron
Yes
Airfoil Shape
Symmetrical
Approximate Assembly Time
Less than 1 Hour
CG (Center of Gravity)
3.3 – 3.8 in (85-96mm) from leading edge of top wing at center
Charger
Sold separately
Completion Level
Bind-N-Fly Basic
Control Throw – High (Ailerons)
1.1 in (27mm)
Control Throw – High (Elevator)
2.2 in (55mm)
Control Throw – High (Rudder)
2.7 in (70mm)
Control Throw – Low (Ailerons)
0.55 in (14mm)
Control Throw – Low (Elevator)
1.1 in (27mm)
Control Throw – Low (Rudder)
1.4 in (35mm)
Elevator
Yes
Flaps
No
Flying Weight
251-2000g, 45 – 48oz (1270 – 1360g)
Landing Gear
Fixed main LG with steerable tail wheel
Length
42.6 in (1082.3mm)
Material
Composite-reinforced, hollow-core EPO
Minimum Required Radio
Full Range DSMX 6 channel computer radio
Minimum Speed Control
60A Smart w/IC3 connector
Motor Size
BL10 brushless outrunner
Propeller Size
11.6 X 6″
Receiver
Spektrum AR637TA
Recommended Motor Battery
3S – 4S LiPo 2200mAh sold separately
Retracts
No
Rudder
Yes
Servos
Four 9g high torque metal gear
Technology
AS3X, SAFE Select
Throttle
Reversible Smart ESC w/Telemetry
Transmitter Range
Full
Trim Scheme Colors
White with Red, Grey, and Black
Wing Area
519 sq. in. (33.5 sq dm)
Wing Loading
12.5 oz/sq ft, 13.3 oz/sq ft
