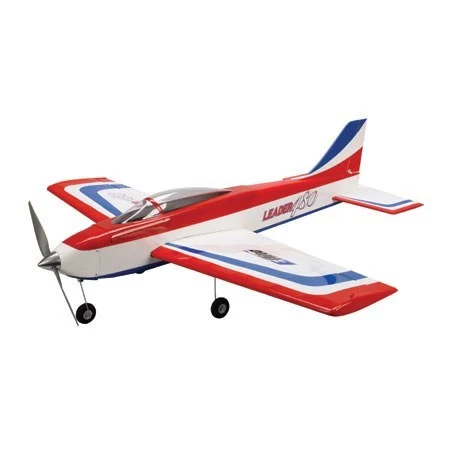

E-Flite E-Flite Leader 480

Features

Attractive trim scheme
Covered in genuine Hangar 9 UltraCote
Balsa/lightweight plywood construction
Quick assembly
Perfect match for E-flite® Park 480 1020Kv motor (EFLM1505)
Easy-access magnetic canopy hatch
Two-piece wing with aluminum wing tube
Factory-painted fiberglass cowl
Wire landing gear

Overview
The nimble Leader 480 park flyer is the fun-to-fly sport plane that is ideal for anyone interested in precision aerobatics. Its light wing loading will put any intermediate pilot at ease when flying on the slow side of the envelope. But for those who really want to wring it out, the Leader’s symmetrical airfoil and classic pattern plane lines allow it to fly precision aerobatics with the best of them. Assembly is so simple, it could easily be flight-ready in a single evening. Plus, it’s small enough to put in the backseat or trunk of a car and fly most anywhere park flyers are allowed. Shown with optional 1/9 Civilian Pilot (EFLA156) and optional 1.75-Inch aluminum spinner (EFLSP175) – sold separately

Tech Notes
You will need…

– 4+ Channel Transmitter and Receiver
– Electric Motor and ESC
– 4 Sub-Micro Servos
– 11.1V 3S Li-Po Battery Pack (1800-2200mAh)
– Li-Po compatible battery charger
– Propeller

Specifications
Wingspan: 43.0 in (1090mm)
Overall Length: 42.4 in (1075mm)
Wing Area: 414 sq in (26.7 sq dm)
Flying Weight: 2.44 lb (1.1kg)
Motor Size: Park 480
Radio: 5+ channel radio system
Servos: DS76 servos
Trim Scheme Colors: UltraCote White (U870), True Red (U866), Deep Blue (U873)
CG (center of gravity): 3-3/8 to 3-3/4 inches (86-95mm) from the leading edge at fuselage
Wing Loading: 13.6 oz/sq in
Prop Size: APC 11x7e – 12x6e
Spinner Size: 1-3/4 inch
Speed Control : 40A ESC
Recommended Battery: 3S 11.1V 2200mAh 30C Li-Po
Flaps: No
Control Throw (Ailerons): Low: 15mm up/down, 33% expo; High: 20mm up/down, 40% expo
Control Throw (Elevator): Low: 8mm up, 9mm down, 20% expo; High: 18mm up, 20mm down, 30% expo
Control Throw (Rudder): Low: 20mm right/left, 20% expo; High: 30mm right/left, 30% expo
Approx. Flying Duration: 7 minutes
Scale: Park Flyer
Minimum Age Recommendation: 14 years
Experience Level: Intermediate
Recommended Environment: Outdoor
Assembly Time: 3-5 Hours
Is Assembly Required: Yes
