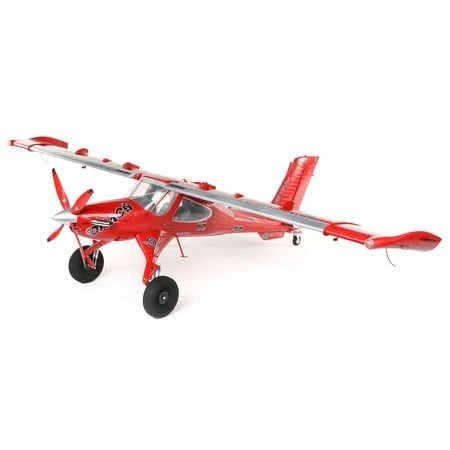

E-Flite E-Flite Draco 2.0m With Smart BNF Basic

DRACO 2.0m Smart BNF Basic with AS3X and SAFE Select
The Extra Scale DRACO 2.0m is one of the most detailed and feature-rich E-flite® aircraft to date, and the only officially-licensed model of Mike Patey’s ultimate bush plane. It excels at STOL and scale-like flying — and looks amazing while doing both!

Overview

THE ULTIMATE BUSH PLANE
By most estimates, planning and building the full-size DRACO should have taken years. Entrepreneur Mike Patey — whose exceptional drive and Back to Work™ ethic have inspired thousands of people — accomplished it in just over five months! Mike started with a Wilga 2000, replacing its Lycoming O-540 piston engine with a Pratt & Whitney PT6A-28 turboprop boasting about twice the power at half the weight. Many additional modifications followed before Mike proudly unveiled his “ultimate bush plane”. It could go to the same places as a Carbon Cub, but also climb twice as fast; reach altitudes up to 28,000 feet; and cruise cross-country at 180 MPH while carrying four people plus gear. Changes from the Wilga were so extensive that the FAA approved Mike’s redesign as an experimental exhibition aircraft. The DRACO 2.0m is equally unique and astounding — and it’s also one of the most highly-engineered, detailed and feature-rich E-flite® aircraft yet!

Video Introduction

Features
The ultimate bush plane for an unmatched STOL, scale and beyond flying experience
The only officially-licensed scale replica of the one-of-a-kind DRACO by Mike Patey
One of the most highly-engineered, detailed and feature-rich E-flite® aircraft to date
Extra Scale details including an abundance of molded-in surface features, steps, antennas, wingtip skids, and much more
Functional Extra Scale features including licensed KING shocks on the main gear and tail wheel, leading-edge slats, slotted flaps, and more
17 total LEDs including navigation, landing, down, tail beacon, reversing and other lights with adjustable light controller
Clear windshield and windows plus a detailed cockpit with backlit instrument panel and pilot figure
Factory-installed, high-power 4S- to 6S-compatible brushless motor with large diameter 4-blade prop
Fits batteries from 4000–7000mAh to provide a wide range of performance and flight times up to 10–15+ minutes
100-amp Spektrum™ Avian™ Smart ESC provides real-time battery voltage, current draw, motor RPM, and other data via compatible receivers and transmitters
Optional-use motor reversing for special ground handling and other capabilities with compatible 7+ channel transmitters
Spektrum AR637TA receiver with full-range telemetry and industry-leading DSMX® technology
Easy to fly with innovative and optional-use SAFE® Select flight envelope protection
The unmatched stability and locked-in feel of exclusive AS3X® technology
Six factory-installed metal-geared servos with internal, ball-link equipped linkages
Large and convenient, magnetically-secured top hatch with large battery compartment
Shock-equipped and steerable tailwheel for improved forward and reverse ground handling
Scale-like articulated and shock-absorbing main landing gear with oversized tundra-style tires
Custom-made and fully-molded carbon fiber gear to handle short takeoffs from and landings on a variety of surfaces
Two-piece wing with quarter-turn thumbscrews plus V2 hands-free servo connection system for quick and easy assembly/disassembly
Durable, fully-molded EPO airframe with carbon fiber and wood reinforcement throughout
Factory-applied paint plus decal finish looks great and saves time
Easy final assembly in less time than it takes to charge a battery
ABSOLUTELY ONE OF A KIND
Inspired by the incredible ingenuity and effort Mike Patey put into building the full-sized aircraft, E-flite® offers the only officially-licensed scale replica of the ultimate bush plane! The amazing DRACO 2.0m is one of the most highly-engineered, detailed and feature-rich RC models ever produced. Beyond its complex design and the accurate shape of its fully-molded, lightweight and durable EPO airframe with a factory-applied finish, it also features an abundance of Extra Scale details including a variety of surface features, steps, antennas, wingtip “stinger” skids, and much more. The clear windshield and windows offer an excellent view of the detailed cockpit with pilot figure and backlit instrument panel. Functional Extra Scale features include licensed, scale-like KING shocks on the main gear and tail wheel, leading-edge slats, slotted flaps and more. There are also a total of 17 LEDs throughout the airframe — with a custom controller that allows you to select solid, strobing and other light combination options from your transmitter. Oversized, tundra-style tires on the custom-made carbon fiber main gear soak up bumps and provide excellent prop clearance, while the shock-absorbing and steerable tailwheel offers improved ground handling — even when taxiing backward with the optional-use motor reversing (compatible Smart receiver and 7+ channel transmitter required for reversing).

Factory-installed, metal-geared servos with ball-link equipped and internal linkages deliver crisp, precise control. The high-power brushless outrunner motor can drive the scale 4-blade propeller with a wide range of 4000–7000mAh batteries, from a 4S pack for slow and smooth scale flight to 6S power for better-than-scale vertical performance. It’s also equipped with a 100-amp Spektrum™ Avian™ Smart ESC, and the BNF® Basic version includes an AR637TA Smart receiver that delivers full-range telemetry including real-time battery voltage, current, motor RPM, ESC temperature, and more to compatible AirWare™ equipped transmitters. And even with its large-scale size and feature-packed design, the DRACO 2.0m can be flight-ready in less time than it takes to charge a battery! No tools are required for field assembly/disassembly because the two-piece wing is secured with quarter-turn thumbscrews. Best of all, if you’ve mastered flying at least one or two previous RC aircraft you can fly the DRACO 2.0m successfully, especially when taking advantage of the BNF® Basic version’s exclusive AS3X® and optional-use SAFE® Select technologies. And it all adds up to offer an unmatched STOL (Short Take Off and Landing), scale and beyond flying experience unlike any other!

The Plug-N-Play® (PNP) version lets experienced modelers choose and use their own transmitter, receiver, battery and charger. The Bind-N-Fly® (BNF) Basic version includes a Spektrum receiver equipped with AS3X and optional-use SAFE Select technologies so intermediate to experienced modelers can use their own transmitter, battery and charger. An ULTIMATE Combo including the BNF Basic version airplane, a Spektrum transmitter, Smart battery, Smart charger, the special tools and glue you need for assembly – plus a copy of RealFlight Trainer Edition RC Flight Simulator – is also available and saves you more than $70 compared to purchasing all of the items separately.

Are you new to flying RC (Radio Controlled) aircraft? If you are, we recommend learning to fly with one of our purpose-built trainer aircraft such as the HobbyZone® Carbon Cub S 2. Based on the Carbon Cub flown by Mike’s wife, Chandra Patey, it’s equipped with exclusive and innovative SAFE technology that makes it possible for almost anyone to learn to fly successfully! The Ready-To-Fly (RTF) version includes everything needed to fly in one box and is the perfect choice if you’re a new RC pilot.

Specifications

Approximate Assembly Time Less than 1 Hour
Battery Sold Separately
Battery Type LiPo (3.7V per cell)Charger Sold Separately
Completion Level Bind-N-Fly Basic
Flaps Yes
Material EPO
Minimum Required Radio 6-channel
Motor Type Brushless
Power Type Electric
Product Length 53″ (1346 mm)
Product Weight 10.0 lbs (4535 g) with 6S 5000mAh 30C battery; 8.5 lbs (3855 g) without battery
Propeller Size 14.5 x 9 4-blade
Radio Sold Separately
Receiver Included
Recommended Motor Battery 4S 14.8V to 6S 22.2V 4000-7000mAh LiPo (sold separately)
Servos Included
Skill Level Level 2
Speed Control Included
Technology AS3X and SAFE
Wingspan 77.7″ (1974 mm)
